CaF2

CaF2

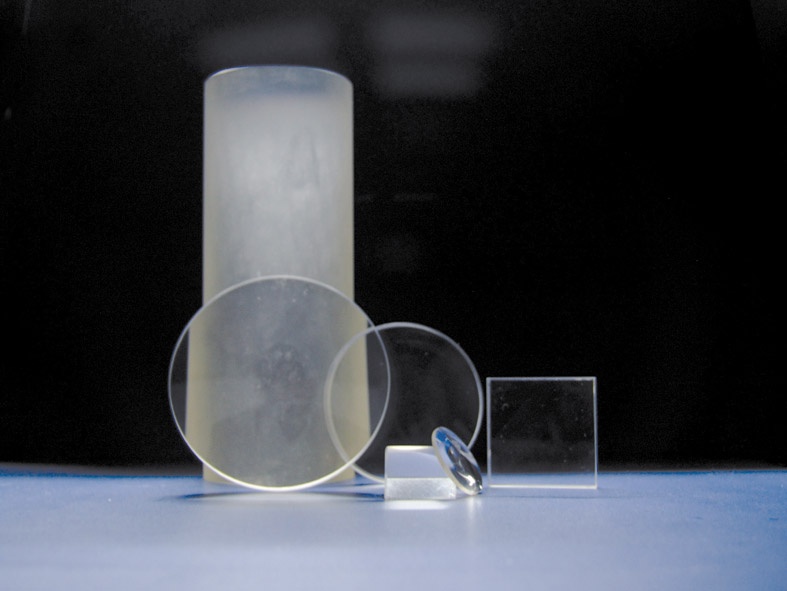

CaF2, CaF2 window, CaF2 lens, infrared



Details


Calcium Fluoride has appropriate refractive index variations for wavelengths and transmission to wavelengths from vacuum ultraviolet 125nm to infrared 12um.
It can be used as a prism, lens or window within a wide region from ultraviolet to infrared. Also, since it has unique optical dispersion (Abbe's number:95),
it can be used as an achromatic
lens(Apocromat) combined with other optical materials.
It can also be used as a laser crystal or radiation detection crystal by doping it with the appropriate rare earth elements.





Capabilities

1. Material: VUV Grade CaF2
2. Diameter: 1-45mm
3. Length: 1-75mm

Specifications:

Clear Aperture-----------------------------------85% of Diameter
Surface Flatness---------------------------------λ/4 at 633nm
Surface Quality----------------------------------20/10



Optical properties

Transmission Range (graph below)

0.15 to 12.5 microns

Refractive Index (table below)

1.39636 at 10.35 microns

Reflection Loss

5.3% at 10.35 microns (2 surfaces)

Absorption Coefficient

3.2 x 10-4 cm-1 at 6 microns

Restrahlen Peak

47nm

dN/dT

-15.2 x 10-6/°C





Physical properties

Density

4.89 gm /cm3

Melting Point

1280°C

Thermal Conductivity

11.72Wm-1K-1 at 286K

Thermal Expansion

18.1 x 10-1/oC at 273K

Hardness

Knoop 82 with 500gindenter

Specific Heat Capacity

410 J Kgm-1K-1

Dielectric Constant

7.33 at 1MHz

Youngs Modulus (E)

53.07 GPa

Shear Modulus (G)

25.4 GPa

Bulk Modulus (K)

56.4 GPa

Elastic Coefficient

C11 = 89.2 C 12 = 40.0 C 44 = 25.4

Apparent Elastic Limit

26.9 MPa (3900psi)

Poisson Ratio

0.343





Chemical properties

Solubility

0.17g /100g water at 23K

Molecular Weight

175.36

Class/Structure

Cubic CaF22, Fm3m, (111) cleavage
