Details


Features

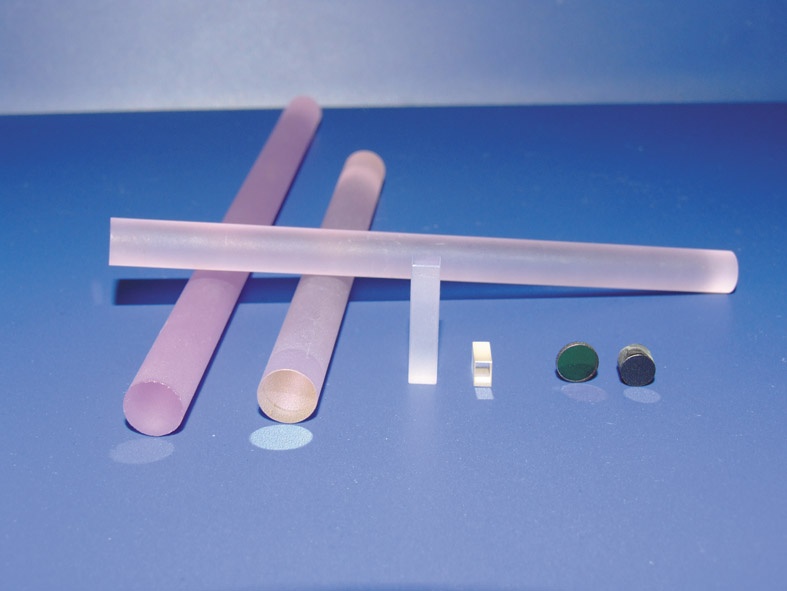

Skight Optics grows Nd, Er, Cr, Tm, Yb, Ho and no doped YAG crystals using the Czochralski technique. YAG crystal is the most commonly laser material for CW, pulsed,  mode   locked lasing and also widely used in all  types  of  solid-state  laser  system,   frequency-doubled continuous wave, high-energy Q switched, and cavity dumped modes of operation.




Specifications
Dopant Concentration Tolerance------------------------0.1%
Parallelism --------------------------------------------------<10 arc seconds
Perpendicularity -------------------------------------------<5 arc minutes
Chamfer-----------------------------------------------------0.1mm @45°
Clear Aperture---------------------------------------------95%
Surface Quality--------------------------------------------10/5
Surface Flatness-------------------------------------------λ/10 @ 633nm
Wavefront Distortion-------------------------------------<7mm diameter: λ/10@633nm
                                                                                    ≥7mm diameter: λ/8@633nm
Damage Threshhold---------------------------------------over 15J/CM2 TEM00, 10NS,
10HZ


Capabilities

1. Nd dopant concentration between 0.6 at%1.2 atm%;
2. Rod sizes from 2mm to 16.5mm in diameter and from 1mm to 180mm in length ;
3. Large rod and slab dimensions and non-standard dopant concentrations are
    available upon request ;
4. AR, HR and HT coating are available upon request.
